Attack hose-Sintack U
Main application used for rack hose, cabinet hose and other premium solution.
Most size with UL, ULC, FM and CCS approved.
- ZYfire
- China
- 30 days
- 1,000,000 mtr/month
Details

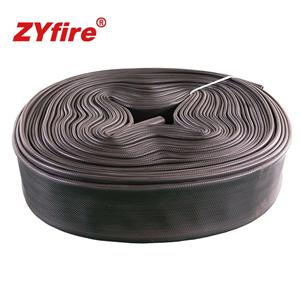

Sintack-U -- UL ULC FM CCS
TPU Lined Hose
Jacket: 100% Virgin Polyester Jacket. Single Jacket, Twill or Plain Weave.
Lining: Polyurethane (TPU) tube.

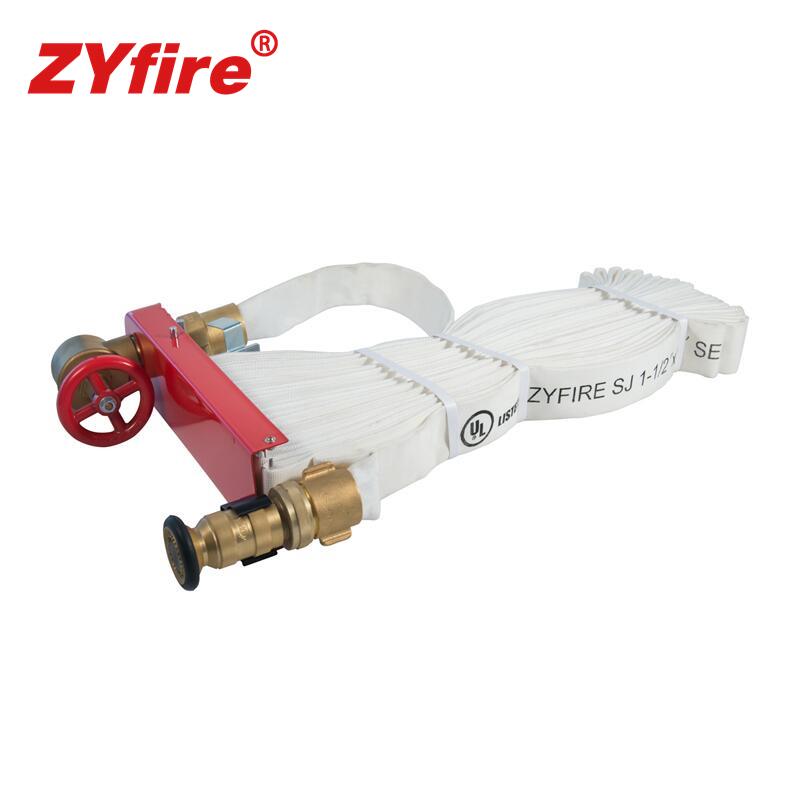

Application: Rack Hose. Cabinet Hose. Premium solution.
Standard length: 15m (50ft), 20m (66ft), 25m (82ft), 30m (100ft)
Color: White, Red, Yellow
I.D. | Service Pressure | Minimum Burst Pressure | |
inch | mm | psi/bar | psi/bar |
1 1/2” | 40 | 150/10, 200/14, 220/15, 250/17 | 450/30, 600/42, 660/45, 750/51 |
1 3/4” | 45 | 150/10, 200/14, 220/15, 250/17 | 450/30, 600/42, 660/45, 750/51 |
2” | 50 | 150/10, 200/14, 220/15, 250/17 | 450/30, 600/42, 660/45, 750/51 |
2 1/2” | 65 | 150/10, 200/14, 220/15, 250/17 | 450/30, 600/42, 660/45, 750/51 |
2 3/4” | 70 | 150/10, 200/14, 220/15, 250/17 | 450/30, 600/42, 660/45, 750/51 |
3” | 75 | 150/10, 200/14, 220/15, 250/17 | 450/30, 600/42, 660/45, 750/51 |
4” | 102 | 150/10, 200/14, 220/15, 250/17 | 450/30, 600/42, 660/45, 750/51 |
6” | 152 | 150/10, 200/14, 220/15, 250/17 | 450/30, 600/42, 660/45, 750/51 |
